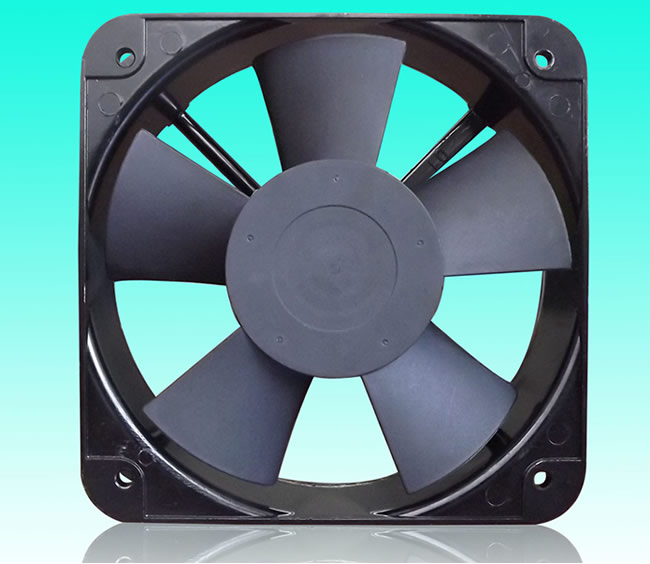

SA20060
HOME >> Products >> Cooling Fan
| 耐 压 | 1800V AC/3秒不击穿 |
| 绝 缘 | 500V DC不低于100兆欧 |
| 工作温度 | -20～70ºC (含油轴承) -20～70ºC (滚珠轴承) |
| 风机温度 | 低于85ºC |
| 扇叶材质 | PBT94ULV黑色 |
| 外框材质 | 铝合金 |
| 允许偏差 | 电流±10%；功率±10%；转速±10%；风量±10% |
| Pressure endurance | 1800V AC/for 3 seconds still functioning |
| Insulation | 500V DC more than 100M Ω |
| Operating temperature | -20～70ºC (sleeve bearing) -20～70ºC (ball bearing) |
| Fan temperature | low than 85ºC |
| Blade material | PBT94ULV black |
| Outer casing | Aluminum alloy |
| Deviation rate | Current±10%；Power±10%；RPM±10%；CFM±10% |
| Model 型号 |
Bearing System 培林 |
Voltage 电压 V |
Frequency 频率 HZ |
Current 电流 A |
Power 功率 W |
Speed 转速 RPM |
Air Flow 风量 CFM |
Static Pressure 风压 Inch-H2O |
Noise 噪音 dBA |
Weight 重量 G |
|---|---|---|---|---|---|---|---|---|---|---|
| SA20060A2HBL | BALL | 230 | 50 | 0.41 | 70 | 2600 | 420 | 0.92 | 65 | 1700 |
| SA20060A2HSL | SLEEVE | |||||||||
| SA20060A1HBL | BALL | 115 | 60 | 0.94 | 75 | 2500 | 400 | 0.86 | 65 | 1700 |
| SA20060A1HSL | SLEEVE |
